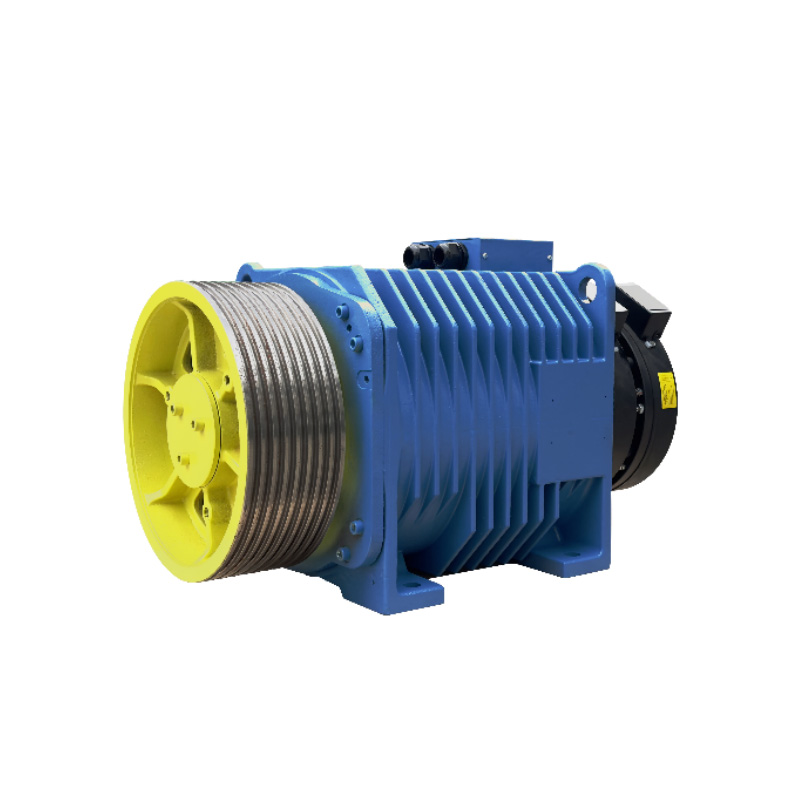

mesin seri WR
| Kapasitas | 1600kg-2000kg |
| Bungkus | Bungkus Tunggal |
| rotor | rotor internal |
| Undercut | U |
| Foot Pad Flatness | <0,5 mm |
| Rating pangayoman | IP40 |
| Kelas Isolasi | F |
| Kutub | 20 |
| Siklus tugas | S5-40％ |
| Motor Rated Tegangan | AC380V |
| Rem | piring |
| Picking / Nyekel Tegangan | DC110V |
Sumber daya rectification gelombang lengkap kanggo rem
| Model | Kapasitas kg |
Kacepetan Lift m/s |
Rated Output KW |
Rated Saiki A |
Rated Speed rpm |
Frekuensi Hz |
Diameter Sheave mm |
Torsi Nm |
tali | Groove Kab. mm |
Sudut Cut | Sudut Alur | Roping | Beban poros kg |
Handle Roda | Remote Release | Inersia kg m^2 |
Bobot kg |
| ★WR-1600-100-D | 1600 | 1.0 | 9.7 | 23.0 | 119 | 19.9 | 320 | 775 | 10-Φ8 | 12 | β=90° | γ=30° | 2:1 | 5000 | N | N | 1.40 | 500 |
| WR-1600-150-D | 1.5 | 16.0 | 42.0 | 179 | 29.8 | 851 | ||||||||||||
| WR-1600-160-D | 1.6 | 17.0 | 191 | 31.8 | ||||||||||||||
| WR-1600-175-D | 1.75 | 18.6 | 209 | 34.8 | ||||||||||||||
| WR-1600-200-D | 2.0 | 20.3 | 45.0 | 239 | 39.8 | 812 | ||||||||||||
| ★WR-2000-100-D | 2000 | 1.0 | 11.5 | 28.0 | 119 | 19.9 | 320 | 922 | 12-Φ8 | 12 | β=90° | γ=30° | 2:1 | 5000 | N | N | 1.50 | 520 |
| WR-2000-150-D | 1.5 | 20.0 | 52.0 | 179 | 29.8 | 1064 | ||||||||||||
| WR-2000-160-D | 1.6 | 21.3 | 191 | 31.8 | ||||||||||||||
| WR-2000-175-D | 1.75 | 23.3 | 209 | 34.8 | ||||||||||||||
| ★WR-2000-200-D | 2.0 | 24.4 | 55.0 | 239 | 39.8 | 976 |
Cathetan: 1. Desain standar saka seri iki mung ditrapake kanggo 180 ° amba wrap.
2. Kanthi★tandha, rasio imbangan punika 0,45 ~ 0,5.
3. Regen drive aplikasi, please takon karo kita, banjur pesen karo cathetan.
