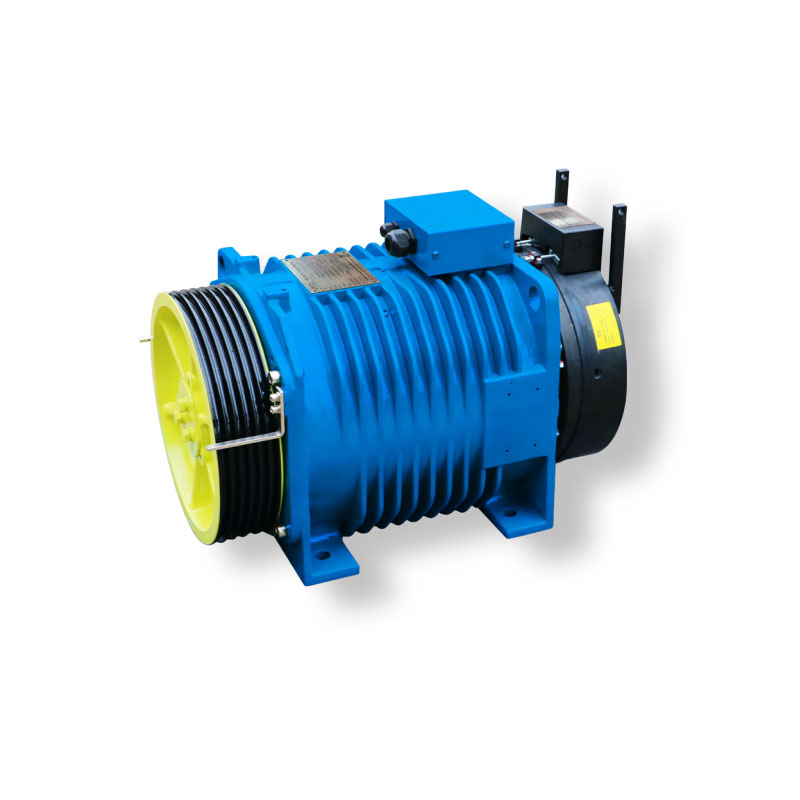

Mesin seri WR-D
| Kapasitas | 450kg-1000kg |
| Bungkus | Bungkus Tunggal |
| rotor | rotor internal |
| Undercut | U |
| Foot Pad Flatness | <0,5 mm |
| Rating pangayoman | IP41 |
| Kelas Isolasi | F |
| Kutub | 20 |
| Siklus tugas | S5-40％ |
| Motor Rated Tegangan | AC380V |
| Rem | piring |
| Picking / Nyekel Tegangan | DC110V |
Sumber daya rectification gelombang lengkap kanggo rem
| Model | Kapasitas kg |
Kacepetan Lift m/s |
Rated Output KW |
Rated Saiki A |
Rated Speed rpm |
Frekuensi Hz |
Diameter Sheave mm |
Torsi Nm |
tali | Groove Kab. mm |
Sudut Cut | Sudut Alur | Roping | Beban poros kg |
Handle Roda | Remote Release | Inersia kg m^2 |
Bobot kg |
| WR-450-100-D | 450 | 1.0 | 2.7 | 8.0 | 119 | 19.9 | 320 | 218 | 4-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.32 | 150 |
| WR-450-150-D | 1.5 | 4.3 | 12.5 | 179 | 29.8 | 228 | ||||||||||||
| WR-450-160-D | 1.6 | 4.6 | 191 | 31.8 | ||||||||||||||
| WR-450-175-D | 1.75 | 5.0 | 209 | 34.8 | ||||||||||||||
| WR-450-200-D | 2.0 | 5.7 | 14.3 | 239 | 39.8 | |||||||||||||
| WR-630-100-D | 630 | 1.0 | 3.8 | 9.5 | 119 | 19.9 | 320 | 305 | 5-Φ8 | 12 | β=90° | γ=30° | 2:1 | 2200 | N | Y/N | 0.43 | 195 |
| WR-630-150-D | 1.5 | 6.0 | 16.0 | 179 | 29.8 | 320 | ||||||||||||
| WR-630-160-D | 1.6 | 6.4 | 191 | 31.8 | ||||||||||||||
| WR-630-175-D | 1.75 | 7.0 | 209 | 34.8 | ||||||||||||||
| WR-630-200-D | 2.0 | 8.0 | 18.0 | 239 | 39.8 | |||||||||||||
| WR-800-100-D | 800 | 1.0 | 4.8 | 12.0 | 119 | 19.9 | 320 | 387 | 6-Φ8 | 12 | β=90° | γ=30° | 2:1 | 2200 | N | Y/N | 0.45 | 205 |
| WR-800-150-D | 1.5 | 7.6 | 21.0 | 179 | 29.8 | 406 | ||||||||||||
| WR-800-160-D | 1.6 | 8.1 | 191 | 31.8 | ||||||||||||||
| WR-800-175-D | 1.75 | 8.9 | 209 | 34.8 | ||||||||||||||
| WR-800-200-D | 2.0 | 10.1 | 24.0 | 239 | 39.8 | |||||||||||||
| WR-1000-100-D | 1000 | 1.0 | 6.1 | 14.5 | 119 | 19.9 | 320 | 484 | 6-Φ8 | 12 | β=90° | γ=30° | 2:1 | 2500 | N | Y/N | 0.46 | 215 |
| WR-1000-150-D | 1.5 | 9.5 | 25.5 | 179 | 29.8 | 507 | ||||||||||||
| WR-1000-160-D | 1.6 | 10.1 | 191 | 31.8 | ||||||||||||||
| WR-1000-175-D | 1.75 | 11.1 | 209 | 34.8 | ||||||||||||||
| WR-1000-200-D | 2.0 | 12.7 | 30.5 | 239 | 39.8 |
Cathetan:
1. Tegangan rem picking/holding yaiku DC110V. Ngalih voltase ora perlu.
2. Rasio imbangan yaiku 0,45 ~ 0,5.
3.Regen drive aplikasi, please takon karo kita, banjur pesen karo cathetan.
