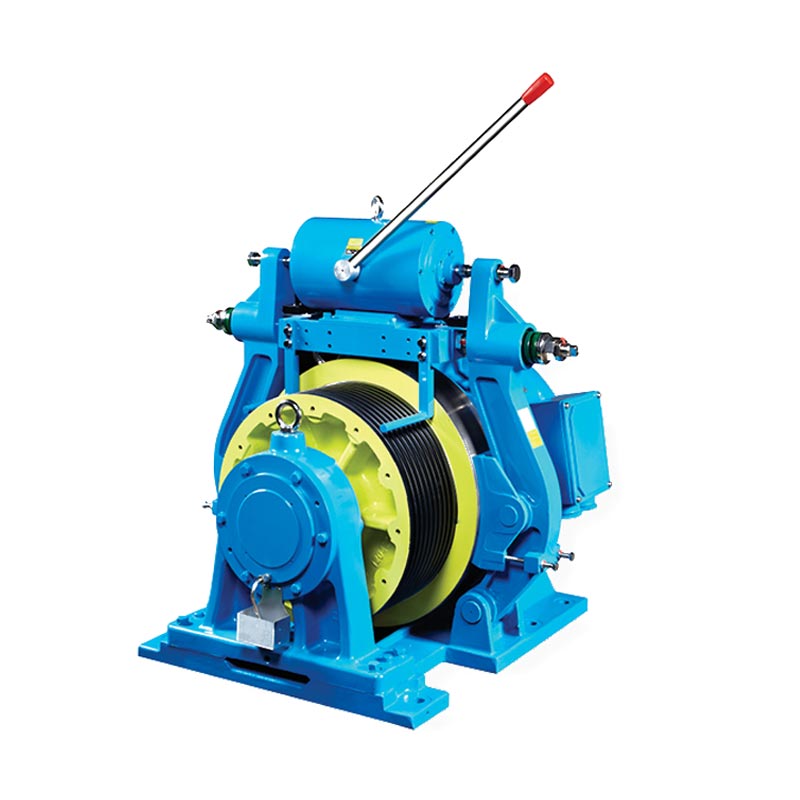

WTY2 / SWTY2 MR Lift Penumpang

Model	Kapasitas kg	Kacepetan Lift m/s	Rated Output KW	Rated Saiki A	Rated Speed rpm	Frekuensi Hz	Diameter Sheave mm	Kutub 2 p	Torsi Nm	tali	Groove Kab. mm	Sudut Cut	Sudut Alur	Rop-ing	Beban poros kg	Handle Roda	Rilis Remole	Inersia kg m^2	Bobot kg
WTY2-1600-100	1600	1.0	11.0	25	73	12.2	520	20	1400	5-Φ13	20	p*95*	γ=30°	2:1	10000	Y	N	10.90	1150
WTY2-1600-150		1.5	16.5	40	110	18.4
WTY2-1600-160		1.6	17.6		118	19.6
WTY2-1600-175		1.75	19.3	42	129	21.4
WTY2-1600-200		2.0	22.0	50	147	24.5
WTY2-1600-250		2.5	27.6	60	184	30.6
WTY2-2000-100	2000	1.0	13.5	32	73	12.2	520	20	1799	6-Φ13	20	β-95*	γ=30°	2:1	10000	N	N	12.20	1250
WTY2-2000-150		1.5	20.6	50	110	18.4
WTY2-2000-160		1.6	22.0		118	19.6
WTY2-2000-175		1.75	24.0	51	129	21.4
WTY2-2000-200		2.0	27.5	60	147	24.5
WTY2-2000-250		2.5	34.5	75	184	30.6
★SWTY2-1000-100	1000	1.0	5.8	15	37	6.1	520	20	1499	6-Φ13	20	β=95*	y=30°	1:1	10000	N	N	13.4	1300
SWTY2-1000-150		1.5	10.1	28	55	9.2			1711									12.20	1250
SWTY2-1000-160		1.6	10.8		59	9.8
SWTY2-1000-175		1.75	11.8		64	10.7
SWTY2-1000-200		2.0	13.4	32	73	12.2
SWTY2-1000-250		2.5	16.8	37	92	15.3
SWTY2-1150-150	1150	1.5	10.9	28	55	9.2	520	20	1896	7Φ13	20	β=95*	γ=30°	1:1	10000	N	N	13.40	1300
SWTY2-1150-160		1.6	11.7		59	9.8
SWTY2-1150-175		1.75	12.8		64	107
SWTY2-1150-200		2.0	14.6	34	73	12.2
SWTY2-1150-250		2.5	18.2	41	92	15.3

Klik kanggo ndeleng gambar

Cathetan:
1. Rem yaiku DC110V lan AC220V, opsional, tegangan rem liyane, hubungi insinyur.
2. AC brake dilengkapi controller, langkah-mudhun trafo ora dibutuhake. DC brake mbutuhake langkah-mudhun trafo ing kabinèt kanggo.
njamin voltase nyekeli 50% saka voltase njupuk.
3. Parameter kanthi "★”kudu cocog karo insinyur kanggo jaban rangkah.
4. Regen drive aplikasi, please takon karo kita, banjur pesen karo cathetan.
5. Rem cocog karo GB / T 7588.1 rada beda antarane gambar lan nyata.

Kapasitas (kg)	Kacepetan Lift (m/s)	Roping	D1	D2	D3	D4	D5	ΦP	W1	W2	W3	W4	H1	H2	H3	Φd2
2500-3000	1.0-2.5	2:1	355	190	537	874.5	1060	520	450	670	750	965	1100	360	40	26
3600-4000	1.0-2.5	2:1	411.5	340	640	1200	1350	640	260	822	912	1130	1200	444	50	34
1250-1600	1.0-2.5	1:1	355	190	537	874.5	1060	520	450	670	750	965	1100	360	40	26
2000	1.0-2.5	1:1	411.5	340	640	1200	1350	640	260	822	912	1130	1200	444	50	34

Cathetan:
1.Brake sing AC220V lan DC220V opsional, voltase brake liyane takon engineers.
2. Rasio imbangan yaiku 0,45 ~ 0,5.
3. Parameter kanthi "★” kudu dicocogake karo insinyur kanggo jaban rangkah.
4.AC brake dilengkapi controller, langkah-mudhun trafo ora dibutuhake. DC brake mbutuhake langkah-mudhun trafo ing kabinèt kanggo.
njamin voltase nyekeli 50% saka voltase njupuk.
5.Regen drive aplikasi, please takon karo kita, banjur pesen karo cathetan.
6. Rem cocog karo GB / T 7588.1 rada beda antarane gambar lan nyata.
