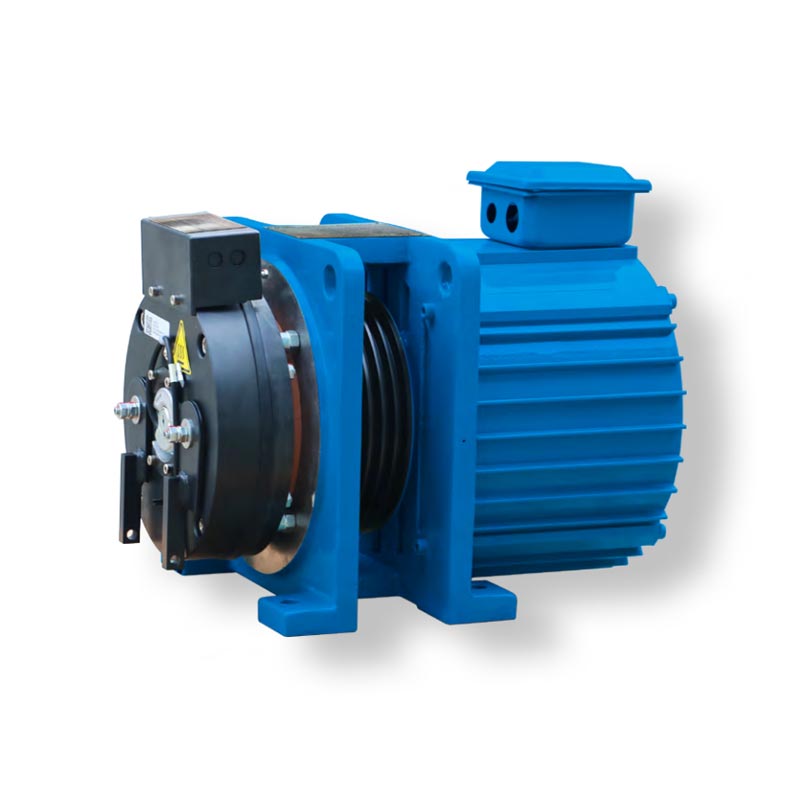

Mesin Seri V1-D
| Kapasitas | 250kg-450kg |
| Bungkus | Bungkus Tunggal |
| rotor | rotor internal |
| Undercut | U |
| Foot Pad Flatness | <0,5 mm |
| Rating pangayoman | IP40 |
| Kelas Isolasi | F |
| Kutub | 16 |
| Siklus tugas | S5-25％ |
| Rem | piring |
| Picking / Nyekel Tegangan | DC110V |
Sumber daya rectification gelombang lengkap kanggo rem
| Model | Kapasitas kg |
Kacepetan Lift m/s |
Rated Output kW |
Rated saiki Volt-umur 220V |
Rated saiki Tegangan umur 380V |
Rated Speed rpm |
Frekuensi Hz |
Diameter Sheave mm |
Torsi Nm |
tali | Groove Kab. mm |
Sudut Cut | Sudut Alur | Roping | Beban poros kg |
Handle Roda | Remote Release | Inersia kg m^2 |
Bobot kg |
| VL-250-40-D | 250 | 0.4 | 0.67 | 6.1 | 3.5 | 76 | 10.2 | 200 | 83 | 3-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-250-63-D | 0.63 | 1.1 | 120 | 16.0 | |||||||||||||||
| VL-250-100-D | 1.0 | 1.7 | 191 | 25.5 | |||||||||||||||
| VL-320-40-D | 320 | 0.4 | 0.85 | 7.4 | 4.3 | 76 | 10.2 | 200 | 105 | 3-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-320-63-D | 0.63 | 1.3 | 120 | 16.0 | |||||||||||||||
| VL-320-100-D | 1.0 | 2.1 | 191 | 25.5 | |||||||||||||||
| VL-400-40-D | 400 | 0.4 | 1.1 | 9.9 | 5.7 | 76 | 102 | 200 | 133 | 3-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-400-63-D | 0.63 | 1.7 | 120 | 16.0 | |||||||||||||||
| VL-400-100-D | 1.0 | 2.7 | 191 | 25.5 | |||||||||||||||
| VL-450-40-D | 450 | 0.4 | 12 | 11.2 | 6.5 | 76 | 102 | 200 | 150 | 4-Φ8 | 12 | β=90° | γ=30° | 2:1 | 1500 | N | Y/N | 0.2 | 110 |
| VL-450-63-D | 0.63 | 1.9 | 120 | 16.0 | |||||||||||||||
| VL-450-100-D | 1.0 | 3.0 | 191 | 25.5 |
Cathetan:
1. Tegangan rem picking/holding yaiku DC110V. Ngalih voltase ora perlu.
2.Regen drive aplikasi, please takon karo kita, banjur pesen karo cathetan.
